For greater Peace.

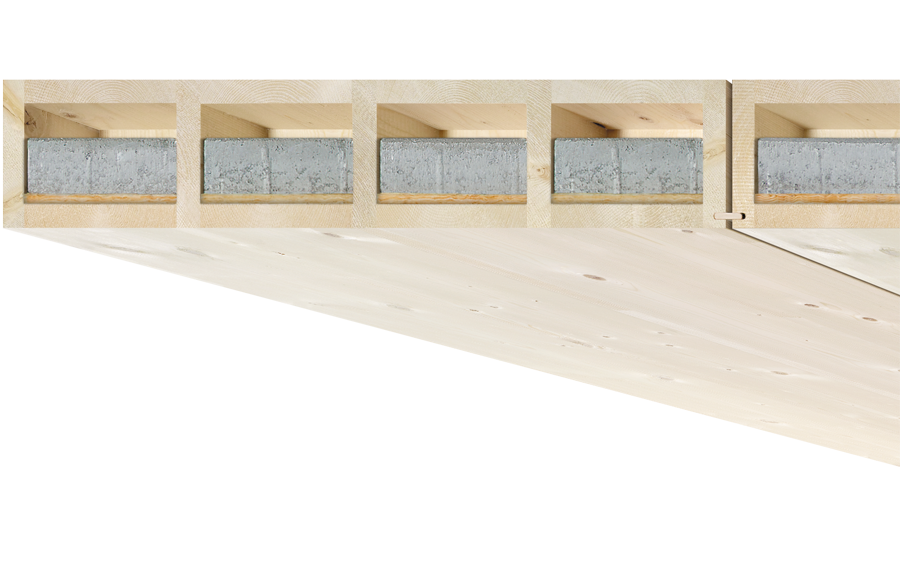

Why don’t timber and wood concrete composite ceilings insulate impact sound adequately for everyone? It’s simple. They can’t control the basses! Our LIGNATUR silence element efficiently solves the problem of low-frequency sound with tuned mass dampers. No more dull droning and rumbling.

Mode of operation of the damper:

The floor is even. The mass lies on the spring (damper).

By walking on it, the floor starts to swing. Dampers, inert masses on the springs, minimize the impact at 50Hz, the 2nd, 3rd or 4th natural frequency. In this example the 3rd natural frequency is shown.

Requirements for soundproofing

In single-family homes (EFH) simpler constructions are usually sufficient for satisfactory soundproofing. For multi-family homes (MFH) and public buildings, the national standards apply. We recommend you agree to the required specifications for airborne and impact sound with the client in writing.

SIA 181 (2006)

Specifications between two rooms:

minimum requirements new built: Di ≥ 52 dB, L‘ ≤ 53 dB
minimum requirements refurbishment: Di ≥ 50 dB, L‘ ≤ 55 dB

increased requirements new built: Di ≥ 55 dB, L’ ≤ 50 dB
increased requirements refurbishment: Di ≥ 53 dB, L‘ ≤ 52 dB

DIN 4109 (2016)

Recommendation for single-family homes:

normal soundproofing: R‘w ≥ 50 dB, L‘n,w ≤ 56 dB (1)
increased soundproofing: R‘w ≥ 55 dB, L‘n,w ≤ 46 dB (1)

Requirements separating floor of a multi-family home:

normal soundproofing: R‘w ≥ 54 dB, L‘n,w ≤ 50 dB (2)
increased soundproofing: R‘w ≥ 55 dB, L‘n,w ≤ 46 dB (1)

(1) softly resilient flooring can be credited
(2) softly resilient flooring can not be credited

Sound samples silence12

First listen to a music example to hear how silence12 ceilings really dampen sound. Use high-quality speakers or headphones.

Further sound samples demonstrate the sound insulation in comparison to other ceiling systems during impact sound excitation.

Sound sample airborne sound

Neighbour listening to music

This is what it sounds like when your neighbour listens to music. In the following audio sample, you can only hear something under the silence12 ceiling (Rw = 71 dB), i.e. in your apartment, when the volume in the room is far too high. Turn up the volume control.

Sound sample from the neighbour in your own four walls

And this is what your neighbour's music sounds like within your own four walls. Now turn down the volume a little bit for further sound reproduction.

1st sound sample impact sound

Sound sample of a man striding in rubber heels

You hear a man in rubber heels walking quickly over the ceiling. Select the volume in such a way that the sound impression is created as if he is walking on a conventional beam layer with a simple floor structure (Ln,w = 77 dB). Do not change the volume afterwards.

Sound sample with LIGNATUR silence12 ceiling

This sound impression is created by the Lignatur silence12 ceiling with fill and cement screed structure (Ln,w = 45 dB).

Sound sample with concrete ceiling

And this sound impression is created by a concrete ceiling with cement screed structure (Ln,w = 38 dB).

2nd sound sample impact sound

Sound sample of a man in rubber heels

You once more hear a man in rubber heels walking quickly over the ceiling and the sound impression that is created with a Lignatur silence12 ceiling with fill and cement screed construction (Ln,w = 45 dB).

Sound sample with LIGNATUR silence12 ceiling with false ceiling

This sound impression is created by the Lignatur silence12 ceiling with fill and a false ceiling (Ln,w = 43 dB).

Sound sample with LIGNATUR silence12 ceiling with suspended ceiling

Lignatur silence12 ceiling with fill, cement screed structure and a suspended ceiling(Ln,w = 25 dB).

3rd sound sample impact sound

Sound sample of a man in rubber heels

You once more hear a man in rubber heels walking quickly over the ceiling and the sound impression that is created with a beam layer with fill, a cement screed construction and a false ceiling (Ln,w = 47 dB).

Sound sample with LIGNATUR silence12 ceiling with fill

This sound impression is created by the Lignatur silence12 ceiling with fill and cement screed structure (Ln,w = 45 dB).

Sound sample with concrete ceiling

And this sound impression is created by a concrete ceiling with cement screed structure (Ln,w = 38 dB).

Floor constructions for renovation

wood chipboard 28 mm
Isover EP2, 30 mm, s‘ ≤ 15 MN/m3
LIGNATUR box element (LKE 200)

Rw,P = 49 dB, C100-3150 = -3 dB, C50-3150 = -4 dB
Ln,w,P = 67 dB, CI,100-3150 = 0 dB, CI,50-2500 = 1 dB

Floor constructions for renovation

Wood chipboard 28 mm
Isover EP2, 30 mm, s‘ ≤ 15 MN/m3
LIGNATUR box element (LKE 200) with fill 90 kg/m²

Rw,P = 61 dB, C100-3150 = -6 dB, C50-3150 = -9 dB
Ln,w,P = 52 dB, CI,100-3150 = 2 dB, CI,50-2500 = 5 dB

Fermacell screed element 25 mm
Gutex Thermofloor, 20mm, s‘ ≤ 30MN/m3
Fermacell honeycomb fill 30 mm
LIGNATUR box element (LKE 200)

Rw,P = 61 dB, C100-3150 = -3 dB, C50-3150 = -7 dB
Ln,w,P = 59 dB, CI,100-3150 = 0 dB, CI,50-2500 = 1 dB

Fermacell screed element 25 mm
Gutex Thermofloor, 20mm, s‘ ≤ 30 MN/m3
Fermacell honeycomb fill 30 mm
LIGNATUR box element (LKE 200) with fill 90 kg/m²

Rw,P = 68 dB, C100-3150 = -5 dB, C50-3150 = -12 dB
Ln,w,P = 49 dB, CI,100-3150 = 2 dB, CI,50-2500 = 6 dB

wood chipboard 28 mm
Isover EP2, 30 mm, s‘ ≤ 15 MN/m3
LIGNATUR box element (LKE 200) silence12 with fill 75 kg/m²

Rw,P = 63 dB, C100-3150 = -2 dB, C50-3150 = -5 dB
Ln,w,P = 53 dB, CI,100-3150 = 1 dB, CI,50-2500 = 2 dB

wood chipboard 28 mm
Isover EP2, 30 mm, s‘ ≤ 15 MN/m3
Fermacell honeycomb fill 30 mm
LIGNATUR box element (LKE 200) silence12 with fill 75 kg/m²

Rw,P = 69 dB, C100-3150 = -4 dB, C50-3150 = -10 dB
Ln,w,P = 47 dB, CI,100-3150 = 1 dB, CI,50-2500 = 5 dB

Fermacell screed element 25 mm
Gutex Thermofloor, 20mm, s‘ ≤ 30 MN/m3
Fermacell honeycomb fill 30 mm
LIGNATUR box element (LKE 200) silence12 with fill 75 kg/m²

Rw,P = 70 dB, C100-3150 = -4 dB, C50-3150 = -9 dB
Ln,w,P = 49 dB, CI,100-3150 = 0 dB, CI,50-2500 = 4 dB

cement screed 50 mm
Isover EP1, 40 mm s‘ = 6 MN/m3
LIGNATUR box element (LKE 200) silence12 with fill 75 kg/m²

Rw,P = 72 dB, C100-3150 = -2 dB, C50-3150 = -9 dB
Ln,w,P = 52 dB, CI,100-3150 = -7 dB, CI,50-2500 = -5 dB

Floor constructions

cement screed 50 mm
Isover EP1, 40 mm s‘ = 6 MN/m3
LIGNATUR surface element (LFE 200)

predicted value Rw = 60 dB
predicted value Ln,w = 62 dB

cement screed 50 mm
Isover EP1, 40 mm s‘ = 6 MN/m3
Fermacell honeycomb fill 60 mm
LIGNATUR surface element (LFE 200)

Rw,P = 67 dB, C100-3150 = -1 dB, C50-3150 = -5 dB
Ln,w,P = 45 dB, CI,100-3150 = -1 dB, CI,50-2500 = 6 dB

cement screed 50 mm
Isover EP1, 40 mm s‘ = 6 MN/m3
Fermacell honeycomb fill 30 mm
LIGNATUR surface element (LFE 200) with fill 100 kg/m²

Rw,P = 74 dB, C100-3150 = -1 dB, C50-3150 = -11 dB
Ln,w,P = 39 dB, CI,100-3150 = 0 dB, CI,50-2500 = 12 dB

Knauf raised floor Camillo
Fermacell honeycomb fill 60 mm
OSB 15mm
LIGNATUR surface element (LFE 200) with fill 100 kg/m²

Rw,P = 71 dB, C100-3150 = -2 dB, C50-3150 = -8 dB
Ln,w,P = 64 dB, CI,100-3150 = -12 dB, CI,50-2500 = -10 dB

melted asphalt 34 mm
Gutex Thermosafe-wd 30 mm
Fermacell honeycomb fill 60 mm
LIGNATUR surface element (LFE 200)

Rw,P = 67 dB, C100-3150 = -1 dB, C50-3150 = -6 dB
Ln,w,P = 51 dB, CI,100-3150 = -2 dB, CI,50-2500 = 3 dB

melted asphalt 34 mm
Gutex Thermosafe-wd 30 mm
Fermacell honeycomb fill 60 mm
LIGNATUR surface element (LFE 200) with fill 100 kg/m²

Rw,P = 73 dB, C100-3150 = -3 dB, C50-3150 = -12 dB
Ln,w,P = 42 dB, CI,100-3150 = 1 dB, CI,50-2500 = 10 dB

Terrace constructions

concrete plate 50 mm, chippings 20 mm, protective membrane 2 mm
two-layered elastomer bitumen membrane 8 mm
PUR / PIR rigid foam 140 mm
vapour barrier 2 mm
LIGNATUR surface element (LFE 200) with fill 100 kg/m²

Rw,P = 61 dB, C100-3150 = -2 dB, C50-3150 = -2 dB
Ln,w,P = 47 dB, CI,100-3150 = -1 dB, CI,50-2500 = 4 dB

concrete plate 50 mm, chippings 20 mm, protective membrane 2 mm
two-layered elastomer bitumen membrane 8 mm
PUR / PIR rigid foam 120 mm, mineral fibre Flumrock floor plate 25 mm
vapour barrier 2 mm
LIGNATUR surface element (LFE 200) with fill 100 kg/m²

Rw,P = 63 dB, C100-3150 = -1 dB, C50-3150 = -2 dB
Ln,w,P = 39 dB, CI,100-3150 = -1 dB, CI,50-2500 = 14 dB

Floor constructions silence12

cement screed 50 mm
Isover EP1, 40 mm s‘ = 6 MN/m3
elastically bonded chippings 70 mm
LIGNATUR surface element (LFE 240) silence12

Rw,P = 72 dB, C100-3150 = -1 dB, C50-3150 = -9 dB
Ln,w,P = 45 dB, CI,100-3150 = -2 dB, CI,50-2500 = 0 dB

cement screed 50 mm
Isover EP1, 40 mm s‘ = 6 MN/m3
elastically bonded chippings 100 mm
LIGNATUR surface element (LFE 240) silence12

Rw,P = 72 dB, C100-3150 = -1 dB, C50-3150 = -8 dB
Ln,w,P = 44 dB, CI,100-3150 = -2 dB, CI,50-2500 = -1 dB

cement screed 50 mm

Isover EP1, 40 mm s‘ = 6 MN/m3

elastically bonded chippings 80 mm

LIGNATUR surface element (LFE 240) silence12

false ceiling GKB 12.5 mm with battens 25 mm

Rw,P = 76 dB, C100-3150 = -3 dB, C50-3150 = -12 dB
Ln,w,P = 43 dB, CI,100-3150 = 1 dB, CI,50-2500 = 2 dB

cement screed 50 mm
Isover EP1, 40 mm s‘ = 6 MN/m3
elastically bonded chippings 80 mm
LIGNATUR surface element (LFE 240) silence12
suspended ceiling 2 x GKF 15 mm with suspension hangers with protective rubber 170 mm

Rw,P = 82 dB, C100-3150 = -2 dB, C50-3150 = -16 dB
Ln,w,P = 25 dB, CI,100-3150 = 1 dB, CI,50-2500 = 14 dB

cement screed 50 mm
Isover EP1, 40 mm s‘ = 6 MN/m3
elastically bonded chippings 60 mm
LIGNATUR surface element (LFE 240) silence12, acoustics type 3.1

Rw,P = 71 dB, C100-3150 = -1 dB, C50-3150 = -10 dB
Ln,w,P = 43 dB, CI,100-3150 = 0 dB, CI,50-2500 = 2 dB

cement screed 50 mm
Isover EP1, 40 mm s‘ = 6 MN/m3
elastically bonded chippings 100 mm
LIGNATUR surface element (LFE 240) silence12, acoustics type 3.1

Rw,P = 71 dB, C100-3150 = -2 dB, C50-3150 = -10 dB
Ln,w,P = 41 dB, CI,100-3150 = 0 dB, CI,50-2500 = 2 dB

Roof constructions

two-layered elastomer bitumen membrane 8 mm

PUR / PIR rigid foam 140 mm

vapour barrier 2 mm

LIGNATUR surface element (LFE 200)

Rw,P = 40 dB, C100-3150 = -2 dB, C50-3150 = -2 dB

two-layered elastomer bitumen membrane 8 mm

mineral wool Flumrock PRIMA 200 mm

vapour barrier 2 mm

LIGNATUR surface element (LFE 200)

Rw,P = 50 dB, C100-3150 = -1 dB, C50-3150 = -2 dB

chippings 50 mm, protective membrane 2 mm
two-layered elastomer bitumen membrane 8 mm
EPS-insulation board 120 mm
vapour barrier 2 mm
LIGNATUR surface element (LFE 200)

Rw,P = 53 dB, C100-3150 = -1 dB, C50-3150 = -2 dB

tile, ventilation, permeable flexible roof underlay
wood fibre 80 mm
LIGNATUR surface element (LFE 200) insulated

predicted value Rw = 44 dB

Prognosis sound transmission for separation floor constructions

[Translate to Englisch:] WB S. 65: Das Prognosemodell für Luftschalldämmung am Bau entspricht im Prinzip der DIN EN 12354-1.

WB S. 67: Das Prognosemodell für die Trittschallübertragung haben wir zusammen mit dem ift Rosenheim in Anlehnung an die DIN EN 12354-2 entwickelt.
